How to determine scan targets

General Guidelines on what should be scanned

Cloud Assets

Cloud assets refer to virtual resources and services provided by cloud platforms like Azure and AWS. These include infrastructure, platforms for application development, software applications, storage, databases, analytics, networking, security, and IoT solutions.

Businesses can utilize cloud assets like virtual machines, cloud storage, software applications, data backup, communication tools, CRM systems, analytics services, and security solutions to enhance operations and scalability.

Question: Which assets should I be scanning for Vulnerabilities?

Well it depends on the type of scan you are performing but the recommendation is to scan all assets that you know of and also run a Discovery Scan for Assets that you do not know of.

Question: How can I determine which assets I have in my cloud subscriptions?

The difference between traditional networks and cloud is that in the cloud it is a bit harder to have assets that you do not know of as you can discover all existing instances with ease having the right permissions.

Amazon Web Services - AWS

Scanning an entire subnet has the advantage that it would discover instances provisioned after the scan was configured. If you are scanning individual hosts then the Scan Surface needs to be updated each time a new host is provisioned.

How to discover AWS subnets in your subscriptions

1. Log in to your AWS Account

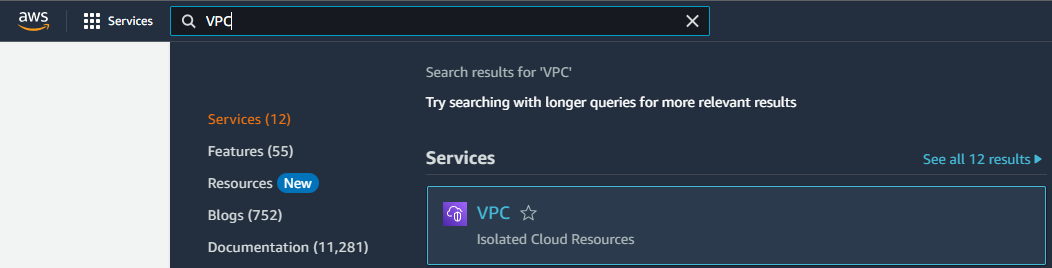

2. Browse to VPC > Subnets

   1.
   2.

3. Take note of all IPv4 CIDR addresses, these are the subnets that we will need to scan



You can also do this from the AWS Cloudshell

1. Start the AWS Cloudshell



   This can be found on the top ribbon:



2. Run the following script that is going to extract the information from all regions:

# Retrieve list of AWS regions
regions=$(aws ec2 describe-regions --query "Regions[].RegionName" --output text)
# Iterate through each region
for region in $regions; do
  echo "Region: $region"
  # List subnets in the current region
  aws ec2 describe-subnets --region $region --query 'Subnets[*].[SubnetId, VpcId, CidrBlock, AvailabilityZone]' --output table
  echo ""
done

Example output:

Region: us-west-1
|                          DescribeSubnets                          |
+------------------+---------------+------------------+-------------+
|  subnet-72246d15 |  vpc-301c8151 |  172.33.16.0/22  |  us-west-1b |
|  subnet-feaa2da6 |  vpc-301c8151 |  172.33.0.0/22   |  us-west-1a |
+------------------+---------------+------------------+-------------+

After knowing all the AWS Subnet information you may add them to the scan surface:

Log in to the Coda Footprint platform and browse to Scan Surface > Agentless Scan Surface > Add elements to agentless scan surface

How to discover AWS instance IP addresses in your subscriptions

Scanning specific hosts is faster and provides less overhead as there are is no traffic generated to scan IP’s that do not have an existing host attached. However this would not automatically detect newly provisioned hosts. Each time you are adding new machines you would need to also update the Scan Surface.

1. Log into your AWS account

2. Browse to EC2 > Instances









3. For each instance take note of it's Public IP (this should be scanned with the Cloud Scanner)
   For each instance take note of it's Private IP by clicking on the instance and browsing to the Networking Tab. (this should be scanned with the Internal Scanner)


4.

You can also do this from the AWS Cloudshell

1. Start the AWS Cloudshell



   This can be found on the top ribbon:



2. Run the following script that is going to extract the information from all regions:

   for region in $(aws ec2 describe-regions --query "Regions[].RegionName" --output text); do
   >   echo "Region: $region"
   >   aws ec2 describe-instances --region $region --query "Reservations[].Instances[?VpcId!='null'].PrivateIpAddress" --output text
   >   echo
   > done

Example output:

Region: eu-north-1
Region: eu-west-3
Region: eu-west-2
Region: eu-west-1
Region: ap-northeast-3
Region: ap-northeast-2
Region: ap-northeast-1
Region: ca-central-1
Region: sa-east-1
192.168.77.1
192.168.77.3
Region: ap-southeast-1
Region: ap-southeast-2
Region: eu-central-1
10.58.55.109
Region: us-east-1
Region: us-east-2
10.22.22.10
10.22.22.11
10.22.22.13
Region: us-west-1
Region: us-west-2

After knowing all the hosts, you may add them to the Scan Surface:

Log in to the Coda Footprint platform and browse to Scan Surface > Agentless Scan Surface > Add elements to agentless scan surface

Microsoft Azure

Scanning an entire subnet has the advantage that it would discover instances provisioned after the scan was configured. If you are scanning individual hosts then the Scan Surface needs to be updated each time a new host is provisioned.

How to discover Azure subnets in your subscriptions

1. Login to Microsoft Azure Portal

2. Search for VirtualNetworks

3. Edit the Manage View > Edit Columns View to show Address Space

4.

   Take note of the Address space entries. Those are the subnets you are looking for

You can also perform this same task using Azure Cloudshell

You need to select “bash” and paste the following script:

#bash
for resourceGroup in $(az group list --query "[].name" --output tsv); do
    echo "Resource Group: $resourceGroup"
    for vnetName in $(az network vnet list --resource-group $resourceGroup --query "[].name" --output tsv); do
        echo "Virtual Network: $vnetName"
        az network vnet subnet list --resource-group $resourceGroup --vnet-name $vnetName --query "[].addressPrefix" --output tsv
        echo
    done
done

How to discover Azure instance IP addresses in your subscriptions

Scanning specific hosts is faster and provides less overhead as there are is no traffic generated to scan IP’s that do not have an existing host attached. However this would not automatically detect newly provisioned hosts. Each time you are adding new machines you would need to also update the Scan Surface.

1. Login to Microsoft Azure Portal

2. Search for Virtual Machines

3. Edit the Manage View > Edit Columns View to show Public IP Address and Private IP Address


   You can perform the same task from the Cloudshell. Make sure to select Bash



Paste the following command:

az vm list-ip-addresses --query "[].virtualMachine.network.privateIpAddresses" --output table

Example output:

Column1
-----------
10.1.0.4
10.2.10.40
10.3.0.4
172.16.68.9
172.16.68.4
172.16.68.5
172.16.68.8
172.16.68.7

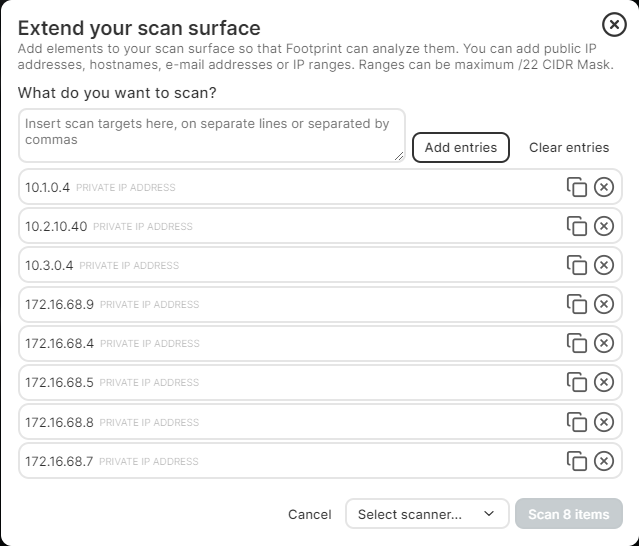

Add the entries to scan surface:

Log in to the Coda Footprint platform and browse to Scan Surface > Agentless Scan Surface > Add elements to agentless scan surface

Reference: https://learn.microsoft.com/en-us/azure/virtual-network/ip-services/private-ip-addresses
