📦 Internal Scanner Ubuntu 24 Upgrade Guide

Overview / Introduction

The Internal Scanner VM is a critical component of our environment, responsible for running vulnerability and network scans within our infrastructure. Periodic upgrades ensure that the scanner remains secure, compatible with new features, and fully supported.

This guide walks you through upgrading the Internal Scanner VM via the Footprint UI. The process is designed to be simple, but a maintenance window is required due to the scanner being unavailable during the upgrade process.

Prerequisites

• Access to the Footprint UI

• Confirmation that the target VM is online and reachable

• Check that Toolkit version is at least 3.10.30 and Controller version at least 1.5.0

If the Toolkit Version is outdated, you can run the following command in order to force update and run:

cd /var/coda/ && ./toolkit_updater.sh && ./coda_toolkit

• Maintenance window scheduled

• (Optional) Access to the Internal Scanner SSH shell (for debugging / log collection)

• Ensure the ISVM has access to the following repositories which provide the necessary packages and updates required during the upgrade process. Verify that no firewall rules are blocking the connections to the required repositories.

  • https://download.docker.com , http://archive.ubuntu.comand https://changelogs.ubuntu.com

  • You can test this by running curl -i <test URL here>, for example curl -I https://download.docker.com

• If the operating system upgrade was initiated prior to granting access to the necessary repositories, it's recommended to restart the upgrade process to ensure all required packages are correctly installed. To do this, execute the following commands:

  • sudo reboot now

  • (wait until the system is fully back online) then run touch /var/coda/internalscanner/OS_UPGRADE && cd /var/coda && ./coda_toolkit

Upgrade steps

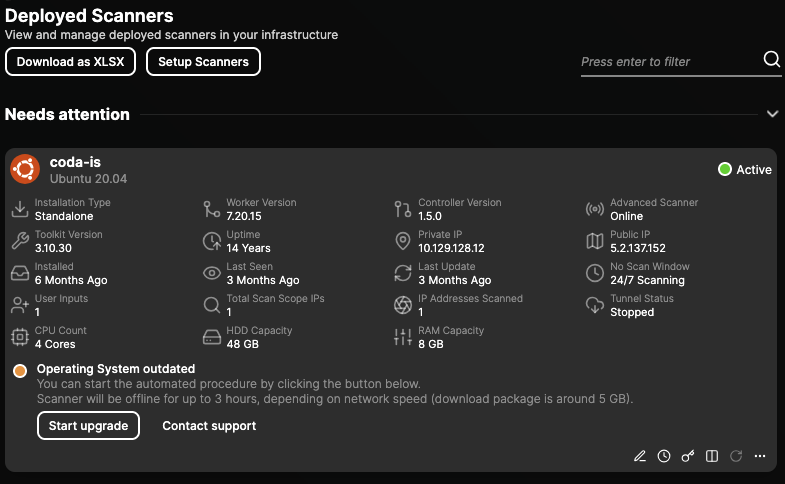

When the Footprint platform detects that the operating system of an internal scanner is outdated, it will show it in a separate group in the Agentless Scan Surface → Deployed Scanners page.

You can start the upgrade process by following the next steps:

1. Set up a maintenance window

   1. Scanner OS upgrades may take up to 3 hours depending on the network speed. The download size is approximately 5 GB.

   2. The scanner will NOT process any scans or tasks during the upgrade process

2. Hit the Start upgrade button in the platform

   1. This will pop up a confirmation window to begin the process:

3. The scanner will start the upgrade process, and you can monitor its progress by following the logs:

4. When the process finishes, the scanner will return to the active state, and the user that initiated the upgrade will receive a confirmation e-mail.

Post-Upgrade Verification

After completing the upgrade, perform the following checks to verify the scanner is healthy:

• Confirm the scanner shows as Active in the UI

• Run a test scan to ensure scan tasks complete successfully

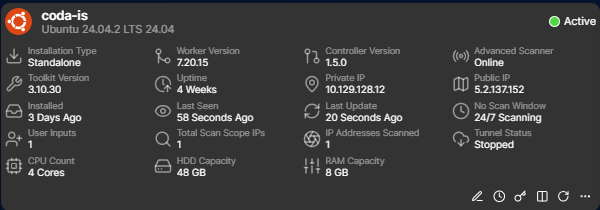

• Verify the scanner operating system version reflects the expected upgrade result - Ubuntu 24.04

Troubleshooting Tips

If you encounter issues during or after the upgrade, try the following steps:

1. Scanner appears offline after the upgrade

• Verify the VM is powered on and network connectivity is stable

• Check firewall rules to ensure the scanner can communicate with the platform

• Restart the VM if needed

2. Upgrade appears stuck or fails

• Review the upgrade log in the UI for more details

• Collect the upgrade logs (Download logs button) and share them with the CODA Support team

3. Scans fail after upgrade

• Reboot the VM as a precaution and re-run the test scan

• If repeated failures occur, contact CODA Support with the scanner name and error details

Support

If issues persist or you’re unsure how to proceed, please contact the CODA Intelligence Support team at support@codaintelligence.com or by opening a ticket.
